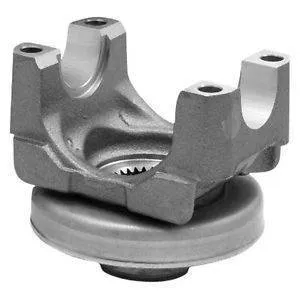

Drive Shaft End Yoke / Pinion Yoke
End yoke fits GM 8.5" and GM 9.25" with 3R Series U Joint and other applications with similar dimensions. 30 spline.
*
Specifications:
| Manufacturer: | AAM |
| Manufacturer Part Number: | 40089892 |
| U-Joint Series: | 3R |
| Style: | Inside Snap Ring |
| U-Joint Cap Diameter (A): | 1.125 Inch |
| Distance Between Machined Flats (B): | 2.563 Inch |
|
End Yoke Length(C) : - Center Line to End of Spline |
3.375 Inch |
| Hub Diameter (D): | 1.940 Inch |
|
Spline Diameter (E): - From Farthest Point to Farthest Point |
1.312 Inch |
| Number of Splines (F): | 30 |
| Bore Length (G): | 1.150 Inch |
| Rear Axle Type: |
GM 8.50 Inch , GM 9.25 Inch
|
How to Measure a Driveshaft Slip Yoke.
Known Applications:
Check part specifications before ordering.
|
DIFFERENTIAL: GM 8.5" |
|
| Vehicle | Year |
|
|
1977 - 1991 |
| 1/2 TON GM PICKUP: (REAR) | 1979 - 2001 |
| 1/2 TON GM VAN: (REAR) | 1979 - 2000 |
| 3/4 TON GM PICKUP: (FRONT) | 1977 - 1990 |
| 3/4 TON GM PICKUP: (REAR) | 1979 - 1998 |
| 3/4 TON GM VAN: (REAR) | 1976 - 1998 |
| BELAIR: (REAR) | 1970 - 1975 |
| BLAZER: (FRONT) | 1980 - 1991 |
| BLAZER: (REAR) | 1982 - 1994 |
| BONNEVILLE: (REAR) | 1971 - 1979 |
| CAMARO: (REAR) | 1970 - 1981 |
| CAPRICE: (REAR) | 1970 - 1996 |
| CATALINA: (REAR) | 1970 - 1996 |
| EL CAMINO: (REAR) | 1971 - 1976 |
| FIREBIRD TRANS AM: (REAR) | 1970 - 1972 |
| GRAND PRIX: (REAR) | 1971 - 1977 |
| GTO: (REAR) | 1971 - 1977 |
| LEMANS: (REAR) | 1971 - 1977 |
| MONTE CARLO: (REAR) | 1971 - 1978 |
| NOVA: (REAR) | 1970 - 1979 |
| SUBURBAN 1/2 TON: (REAR) | 1979 - 2001 |
| SUBURBAN 1/2 TON: (FRONT) | 1980 - 1981 |
| SUBURBAN 3/4 TON: (FRONT) | 1988 - 1991 |
| SYCLONE: (REAR) | 1991 - 1991 |
| TAHOE / YUKON: (REAR) | 1992 - 2001 |
| TYPHOON: (REAR) | 1992 - 1993 |
|
DIFFERENTIAL: 9.25" |
|
| Vehicle | Year |
| 1 TON GM PICKUP: (FRONT) | 1988 - 2006 |
| 3/4 TON GM PICKUP: (FRONT) | 1988 - 2006 |
| H2: (FRONT) | 2003 - 2006 |
****
This part is compatible with:
Sleeve - 26060975
Strap Kit -
Strap Kit - Neapco
Alternate Part Numbers:
15588336, 88967027, 40025925
For assistance measuring your end yoke/pinion yoke you can use our:
If you have any questions we are here to help: | | (574)287-9650
Alternate Part Options: Same part as PTI End Yoke & replaces AAM End Yoke.
